高清4MP 無線WIFI/POE供電兩用 ip智能網絡攝錄機 遠程控制 雙向語音對話 紅外夜視
● MicroSD錄影 ,NVR硬碟錄影機和電腦等同時多方式儲存連接
● 高解析機種，精巧美觀室內安裝最適合！
●全天後皆可使用的高優質攝影機掛牆及座檯兩用,可，讓人感覺自由方便。 是一件好用小精靈眼。
●內建LED，具夜視功能，可投射10米,紅外線夜視耐用度最佳！
●機身採用純白色高硬度塑膠外殼
●雙層玻璃設計，可有效減少鏡頭反射光
●採用綠色環保光電二極體，準確驅動IR LED日夜切換

***********************************

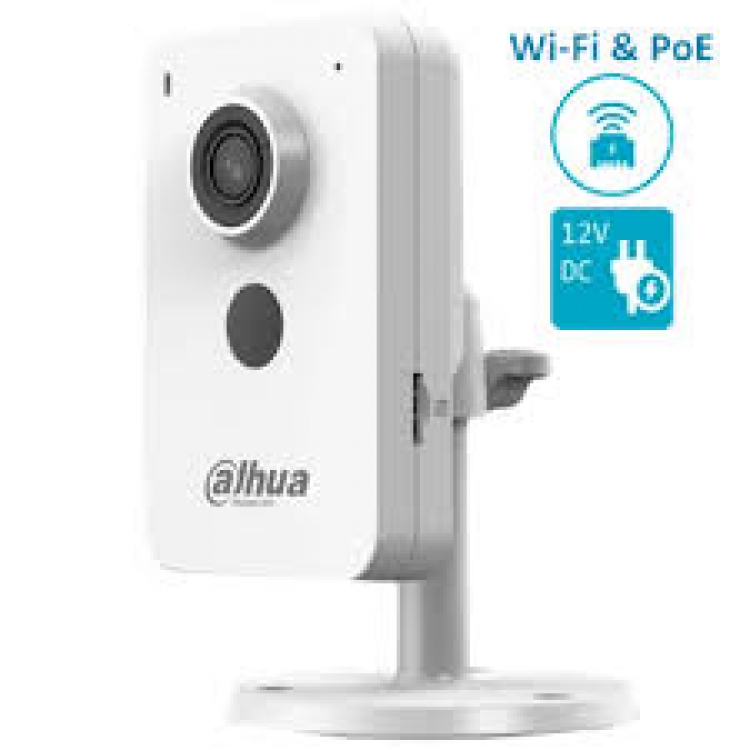

4MP Compact Wi-Fi & PoE Camera

The Cube Series, which is under the Dahua Wireless series, are cameras that are not only easy to install and operate, but also perform outstandingly and are cost-effective. They capture sharp, detailed images of scenes in high definition and offer powerful functions including AI human detection, privacy mode, and two-way talk. Information is synchronously sent to your phone to keep you up-to-date. These cameras are widely used in small and medium-sized settings such as small-sized retail stores.

●CCTV款式太多歡迎來電查詢,講解操作程序,全天候技術支援方案。上門實地燈光/距離/效果測試服務。

編碼標準 G.711A
音頻輸入 內置38dB 麥克風
音頻輸出 內置6 歐，1 瓦揚聲器
感光元件: 1/4" CMO CCD
有效像素:NTSC 1028(H) x 508(V)  /  PAL 1028(H) x 596(V)
掃瞄系統 :2:1 內交織掃描
最低照度 :0.01 Lux/F1.8 IR on: 0.001 Lux
電子快門控制: Auto-Electronic shutter (1/60~1/100000 sec) NTSC  ,   (1/50~1/100000 sec) PAL
影像感測元件 :1/3" color CCD sensor interline
掃瞄系統: 2:1 內交織掃描
珈瑪 :0.45
視訊雜訊比 :50dB(AGC off)
白平衡功能 :Auto(2500K~9500K)
逆光補償  : AUTO
儲存溫度  :-30°C~80°C

操作溫度  :-10°C~50°C

附件
●主機(1) Tanapa:C35-368
●吊裝/掛牆扣(1)

●USB變壓器(1)

●MicroUSB充線(1)

IPC-C35

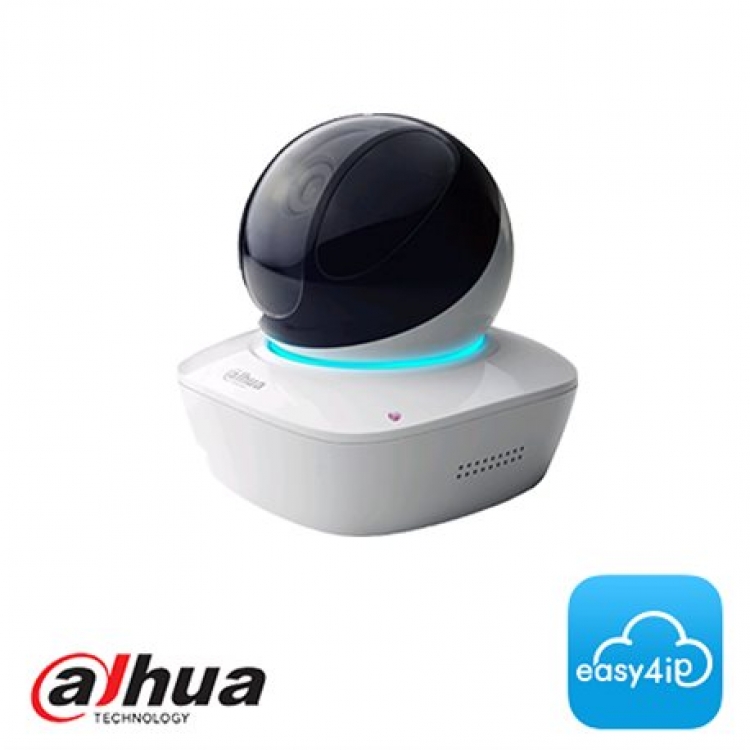

3MP A Series Wi-Fi Network PT Camera
> 1/3” 3Megapixel progressive CMOS
> H.264& MJPEG dual-stream encoding
> 20fps@3M(2304×1296)&25/30fps@1.3M (1280×960)
> 0°~355° Pan range, 90°Tilt range, 25 presets
> IR Diatance 10m
> Easy4ip cloud support
> Wi-Fi Support
> Micro SD card slot, up to 128GB
> DC5V2A


Camera
Image Sensor 1/3” 3Megapixel progressive CMOS
Effective Pixels 2304(H) x1536(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Minimum Illumination 0.78Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 10m(33ft)
IR On/Off Control Auto/ Manual
IR LEDs 2
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm
Max. Aperture F2.0
Angle of View H:77°;V:42°
Focus Control Fixed
Close Focus Distance N/A
Video
Compression H.264/H.264B/H.264H/MJPEG
Streaming Capability 2 Streams
Resolution 3M(2048×1536)/3M(2304×1296)/
1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/VGA(640 ×480)/

QVGA(320×240)

Frame Rate 3MP(1~20fps)/2M(1~25/30fps)
VGA/QVGA(1~25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detetion Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio
Compression G.711A;G.711Mu;AAC
Network
Ethernet RJ-45 (10/100Base-T)
Wi-Fi Wi-Fi(IEEE802.11b/g/n),50m(open field)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;
DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users/20 Users
Edge Storage NAS(Network Attached Storage),Local PC for instant recording, 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone iPhone, iPad, Android Phone
Certifications
Certifications CE (EN 60950:2000)
UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface
Video Interface N/A
Audio Interface Built-in Mic & Speaker
RS485 N/A
Alarm N/A
Electrical
Power Supply DC5V 2A
Power Consumption <8.5W
Environmental
Operating Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Strorage Conditions -10°C ~ +45°C (14°F ~ +113°F) / Less than 95% RH
Ingress Protection N/A
Vandal Resistance N/A
Construction
Casing Plastic
Dimensions 94.4mm x 94.4mm x 94.4mm(3.72’ x3.72’’x3.72’’)
Net Weight 0.215Kg(0.47lb)
Gross Weight 0.575Kg(1.27lb)

適用於 "DAHUA " ip鏡頭型號
是一款CCTV手機程式，支援iPhone、Android、黑莓機以及PC的跨平臺通訊，幫自己申請一個帳號後，就能立即線上，1極佳的視覺效果和操作體驗。2.全新的演示點展示方式。3.設備名稱、通道名稱可以進行昵稱備註，方便用戶記憶。4.增加帳號系統，一個帳號下可以綁定多個設備，使用者無需記憶設備號，只需要記住帳號，即可實現視頻的集中管理。5.支援畫面滑動切換視頻，長按切換視頻。6.支援音訊監聽。7.支援語音對講。8.支援本機錄影、抓拍。9.支援遠端重播錄影（但不支援播放音訊）。10.支援現實場景的縮略圖，並保存在伺服器端。

http://www.jpeasy.com/article_cat.php?id=40

SMART PPS電腦版
是款非常專業好用的家庭視頻監控軟體。軟體功能強大，操作簡單，SMART PPS電腦版採用P2P網路傳輸技術，實現遠端監控，指令傳輸，還支援錄影、回看等功能。用戶們在使用SMART PPS電腦版就可以隨時瞭解家裡的情況，隨時關注家人的情況。

http://www.jpeasy.com/article_cat.php?id=40
