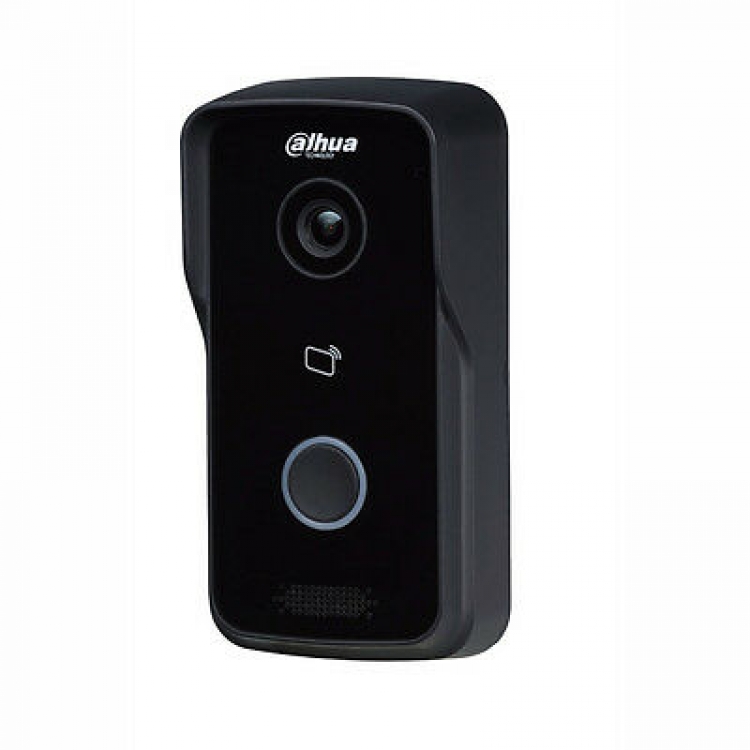

門口視像對講主機/拍卡  WiFi/有線/POE供電 視像對講機 內置咪 手機開門 IP65 英文版 MicroSD

16.1x10.2x5.6 1MP wifi door station

VTH1560BW  -31x27.5x5CM INdoor Station

支援顯示ENG

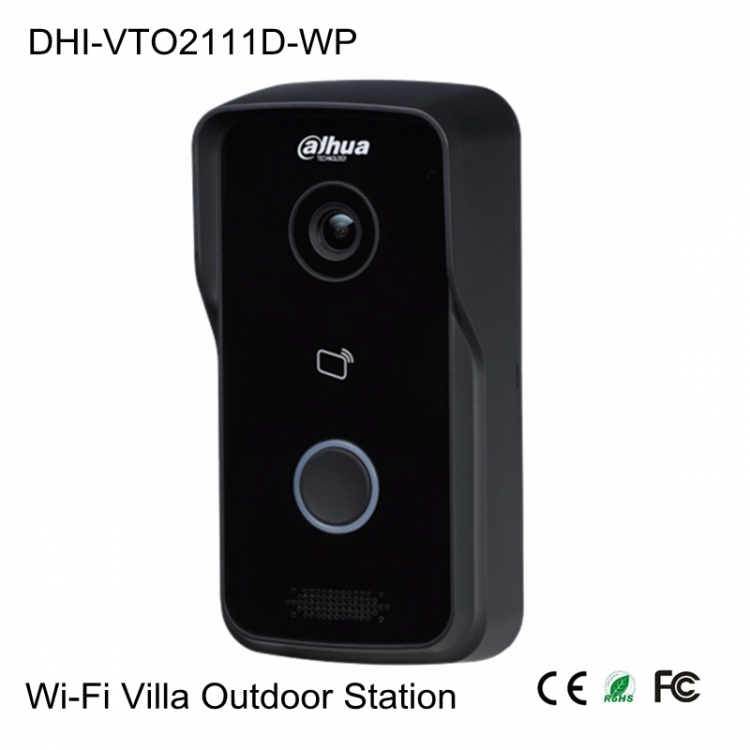

Mode DHI-VTO2111D-WP
System Main Processor Embedded Micro Processor
Operation System Embedded LINUX OS
Video Video Compression H.264
Image Sensor 1/4” 1MP CMOS
Lens 2.2mm
Angle of View D:125° H:105°
Day/Night ICR
Audio Audio Compression G.711
Audio Input Omnidirectional Mic
Audio Output Built-in Speaker
Bidirectional Talk Support Dual-way Bidirectional talk
Operation Mode Keypad Single Mechanical Button
Reader Mifare Card
Body Approaching 1m
Interface Door Control 2(1 relay out for main lock, 1 extended by access control module)
Alarm In 2(1ch unlock button, 1ch feedback)
RS485 1
Network

Wi-Fi IEEE802.11b/g/n
Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP
General Ingress Protection IP65
Tamper Switch 1
Memory Slot Micro SD, Max 64G
Installation Surface & Flush
Material Plastic
Power DC 12V，PoE(802.3af)
Power Consumption Standby ≤1W, Work ≤7W
Working Environments ﹣30℃～+60℃
Relative Humidity 10%～90%RH
Dimensions 135mm×70.4mm×34.4mm
Weight 0.4Kg；
