可視對講主機 手機APP開鎖 辦公室 PoE供電 1080P高清網絡攝像頭 140度廣角 金屬 連底座 ENG

高清、全數字門口機，可選鋼化玻璃面板，藍色背光全觸摸按鍵。，200W高清網絡攝像頭，140度廣角

工程安裝便利性（採用掛板支架安裝、支援批量刷機配置、支持網線PoE供電 ）

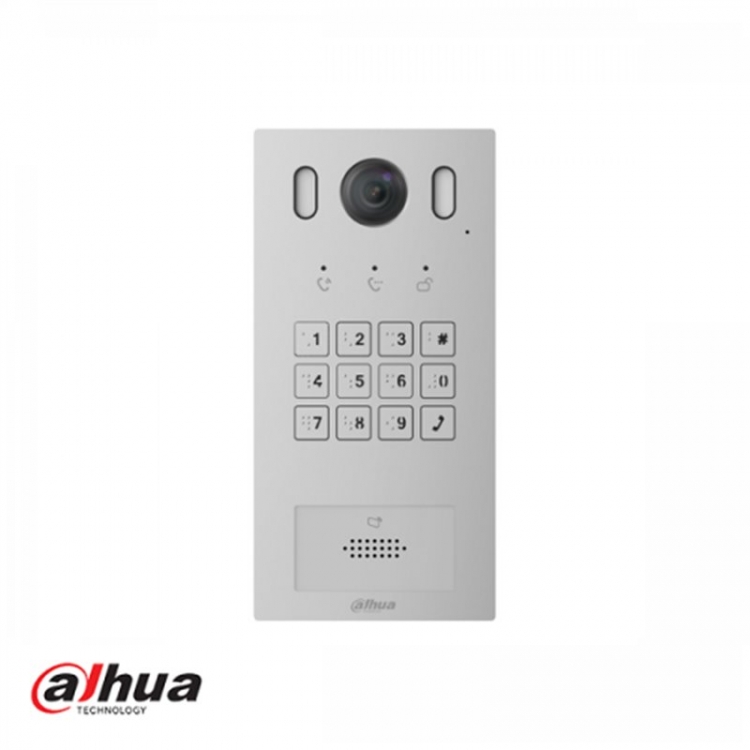

Villa Outdoor Station

> Keyboard villa door station
> Supplemental lighting with white light
> 2MP CMOS camera
> Mechanical button with Braille
> Aluminium alloy plate, IP55, IK08
> Door release via password and Mifare card
Technical Specification

Model
VTO3221E-P
System
Main Processor
Embedded Micro Processor
Operation System
Embedded LINUX OS
Video
Video Compression
H.264
Image Sensor
1/2.9” 2MP CMOS
Auto Gain Control
White Light
Lens
2mm
Angle of View
H:140° V:82°
Day/Night
Color Image
Audio
Audio Compression
G.711
Audio Input
Omnidirectional Mic
Audio Output
Built-in Speaker
Bidirectional Talk
Support Dual-way Bidirectional talk

Display
Screen
2.3'' OLED
Operation Mode
Keypad
Mechanical Button with Braille
Reader
Mifare Card (13.56MHz)
Interface
Alarm In/Out
1/1
Door Control
1 Relay Out
1 RS485
1 Feedback
1 Exit Button
Wiegand In
1

Network
Ethernet
10M/100Mbps
Network Protocol
TCP/IP
General
Ingress Protection
IP55, IK08
Tamper Switch
1
Installation
Surface & Flush
Material
Aluminum
Power
DC 12V, 2A, PoE(802.3af)
Power Consumption
Standby ≤2W, Work ≤7W
Working Temperature
﹣40°C~+60°C
Relative Humidity
20%~95%RH
Dimensions
200mm×98mm×32mm
Weight
1.5Kg

·支持可視對講
·高清監控（最大1280×960 30fps解析度，寬動態，120度廣角）
·智能補光
·門禁功能
·支援本地髮卡功能
·開鎖抓拍圖片自動上傳
·支持電梯聯動
·報警功能（門磁報警、防拆報警）
·硬體雜訊抑制與回聲消除，保證話音品質清晰明亮
